Data processed 379 records 137 verified 242 unverified reference entries
Rigging reference

Electric chain hoists for entertainment rigging

379 records from 36 manufacturers. Only 137 are Doc-checked or Maker site — checked against a manufacturer document or fetched from the manufacturer's own page.

The other 242 are Unverified reference entries: real product lines whose specifications we have not confirmed. Confirm those against the manufacturer before rigging. The Ask assistant answers only from the verified 137.

Verified
137
Browse verified
Records
379
Browse all
Makers
36
Statistics

Filter hoists

Manufacturers

36
MOVEKET26 Columbus McKinnon23 Stahl CraneSystems21 SWF Krantechnik20 Verlinde20 Elephant Lifting Products17 All 36 manufacturers

Load capacity

rated records
≤250 kg19 251-500 kg26 501-1000 kg22 1001-2000 kg23 >2000 kg13

Classification

records
CE80 ANSI54 ATEX32 D8+32 OTHER26 D824 What D8, D8+ and C1 mean

Featured hoists

Records with a local image and core specs, one per manufacturer

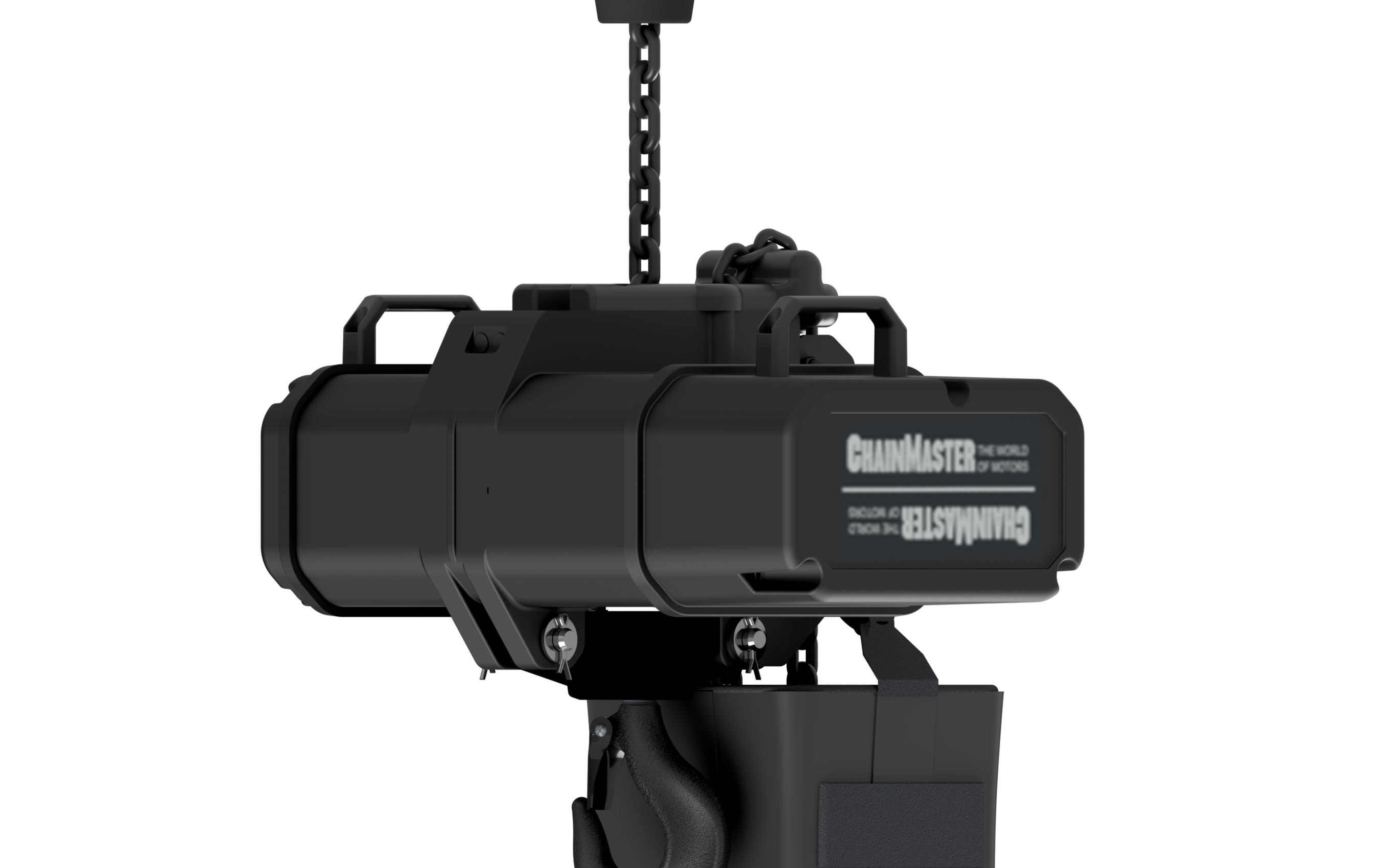

Chainmaster Doc-checked

D8+ 2000

D8+ D8
Capacity
2000 kg (D8 Plus)
Speed
4 m/min at 50 Hz (16 ft/min at 60 Hz)
Power
2.2 kW at 50 Hz (2.6 kW at 60 Hz), motor 90L4E
Verlinde 3D Doc-checked

Stagemaker SL 250

D8+ D8
Capacity
250 kg (551 lbs)
Speed
8 m/min at 50 Hz (16 m/min SL5 2516)
Power
0.73 kW (1.0 HP)

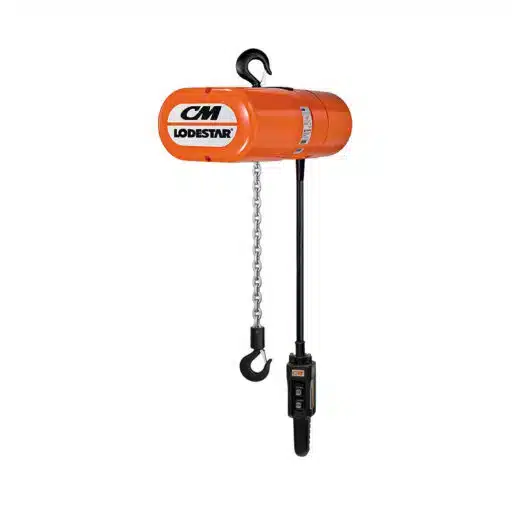

Columbus McKinnon Doc-checked

Lodestar Classic 250

D8
Capacity
250 kg (1 fall)
Speed
4.06 m/min (B) or 8.13 m/min (C) at 50 Hz
Power
0.186 kW (B and C, manual Table 1); the 2019 and 2022 catalogues print 1/4 HP for B and 1/2 HP for C

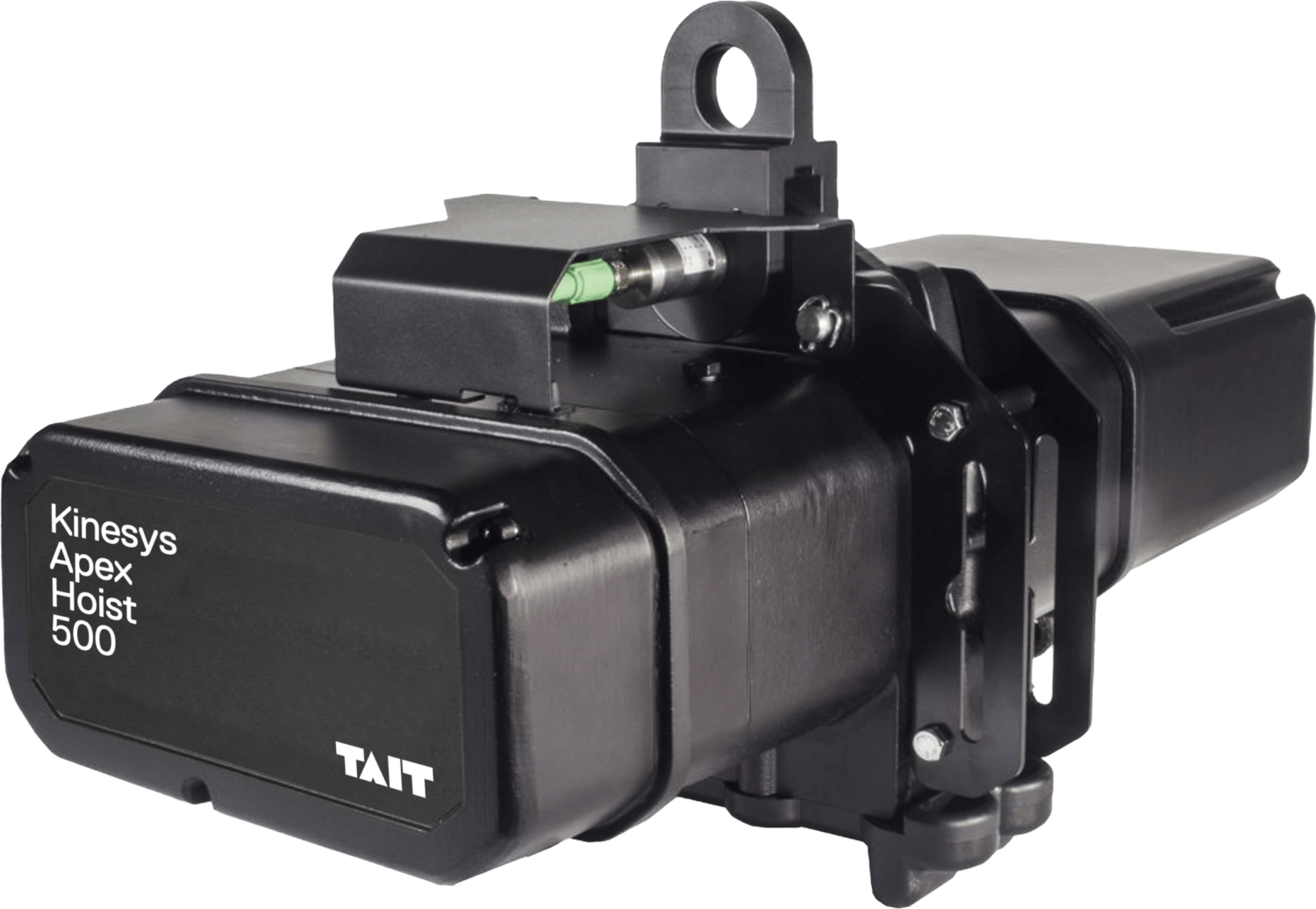

Kinesys 3D Doc-checked

Apex 500

BGV-C1
Capacity
500 kg (1200 lbs) ELL
Speed
0-30 m/min variable (max 500 mm/s)

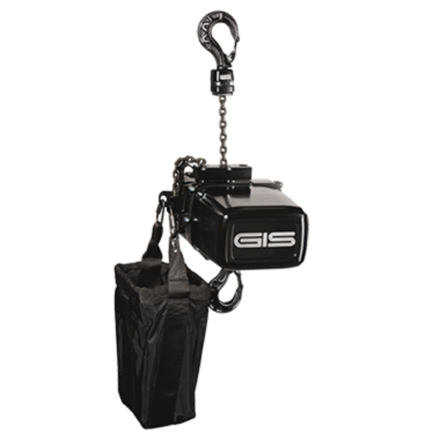

GIS AG 3D Doc-checked

LPM250 D8+

D8+
Capacity
250 kg (551 lbs)
Speed
4 m/min at 50 Hz, 4.8 m/min at 60 Hz (NL); SL: 8 m/min at 50 Hz, 125 kg max
Power
0.25 kW (0.3 HP)
Browse all 379 records
