D8+

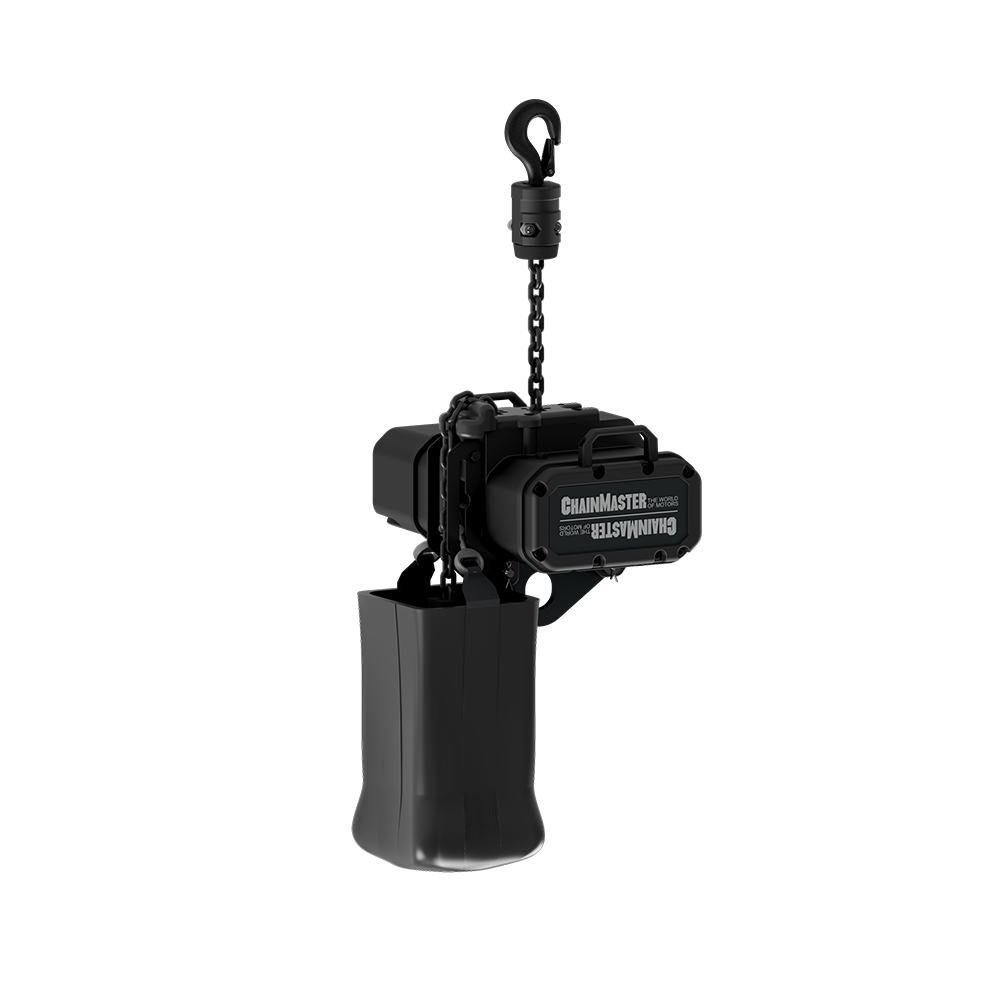

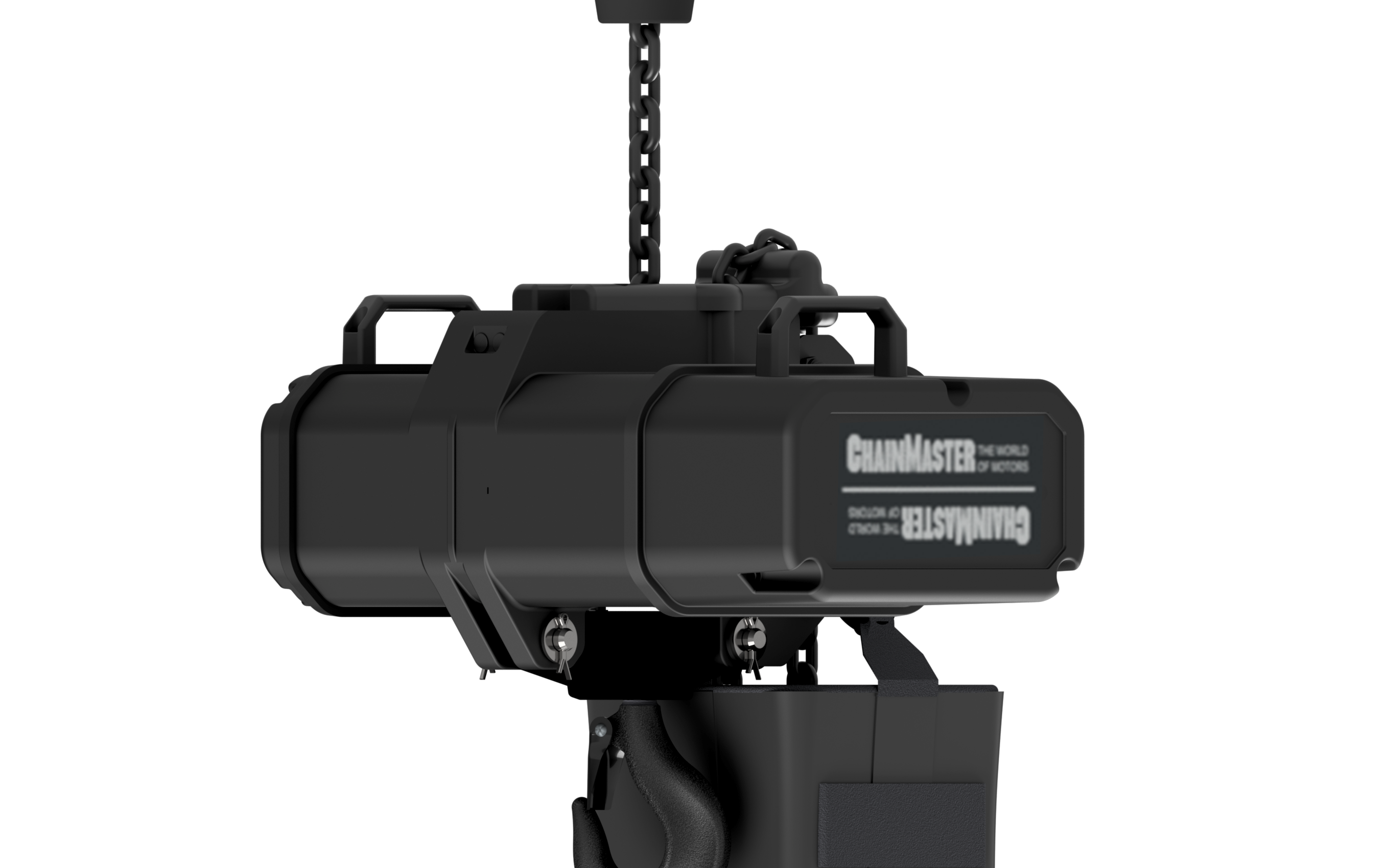

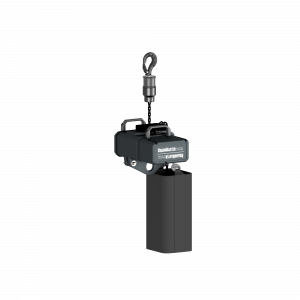

CHAINMASTER D8 Plus stage chain hoists. CHAINMASTER "Technical Data Stage" V10.1 (07/2023), LIFTKET group, linked from liftket.com (archived copy) p.2 lists D8 Plus loads from 250 kg (SB1.1/81B) to 2000 kg (110/14 SB), on LIFTKET SB1.1, SK030, SK070, SB6.1, SB8.2/8.3 and 110 bodies, all with 2 brakes and IP55 standard; p.3 gives each body's dimensions. CHAINMASTER rates each body three ways: D8 per DGUV V54, D8 Plus per SQP2 2018:10 (8:1 static) and C1 per DGUV V17 / DIN 56950 (8:1 dynamic) (p.2 notes 1-3); body weight is without chain, hook and suspension, direct control (note 4). The seed range "125-2000 kg", speed "2-24 m/min" and a BGV-C1 rating for the family were not sourced; C1 ratings exist per body in the table, not as a family claim.
