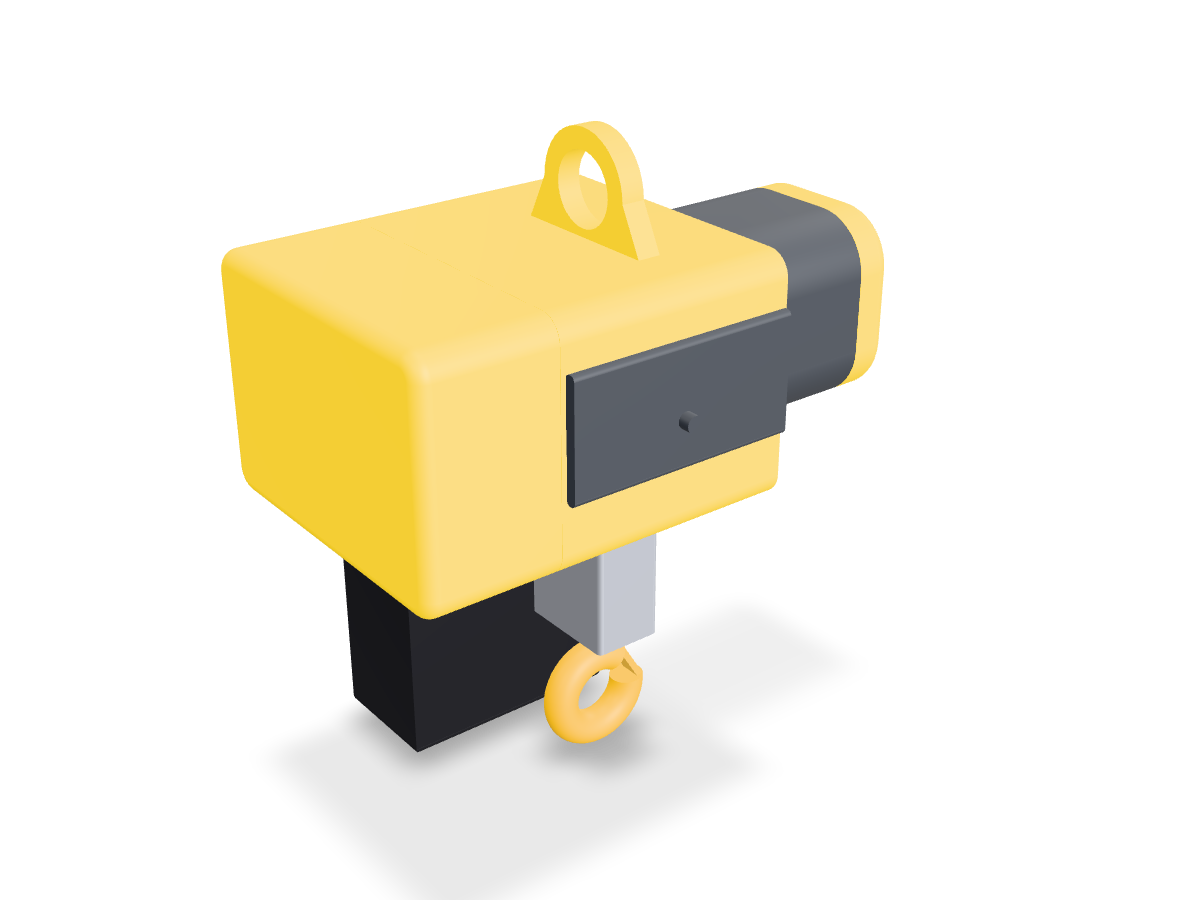

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Specifications
| Chain fall | 2 falls |
| Motor power | ZNK 100 B 8/2 (two-speed) |
| Supply | 400V 3Ph |
| Dimensions | 578 x 349 x 187 mm (l x b x d; b 409 with chain collector H8); C 564 / 597 mm with the short / long…578 x 349 x 187 mm (l x b x d; b 409 with chain collector H8); C 564 / 597 mm with the short / long suspension bracket (p.19); C1 582 / 632 (short bracket, collector H4/H5 / H8); +60 mm with the external cut-off spring bottom block |
| Duty cycle | 40/20 % CDF; FEM 2m / ISO M5 at 2000 kg (DIN EN 14492) |
Source notes
Demag DC-Com 10 electric chain hoist. Demag document 20357144 (demagcranes.com): selection table p.13 (2000 kg (DC-Com 10, 2/1), chain 7.4 x 21.2 mm, 4.0 / 1.0 m/min (merged cell over the DC 10 rows), motor ZNK 100 B 8/2, max. weight per hook path 4 / 5 / 8 m), dimensions p.18-19 (l, b, d, C). Industrial hoist; Demag states no entertainment (D8/D8+/C1) rating.
