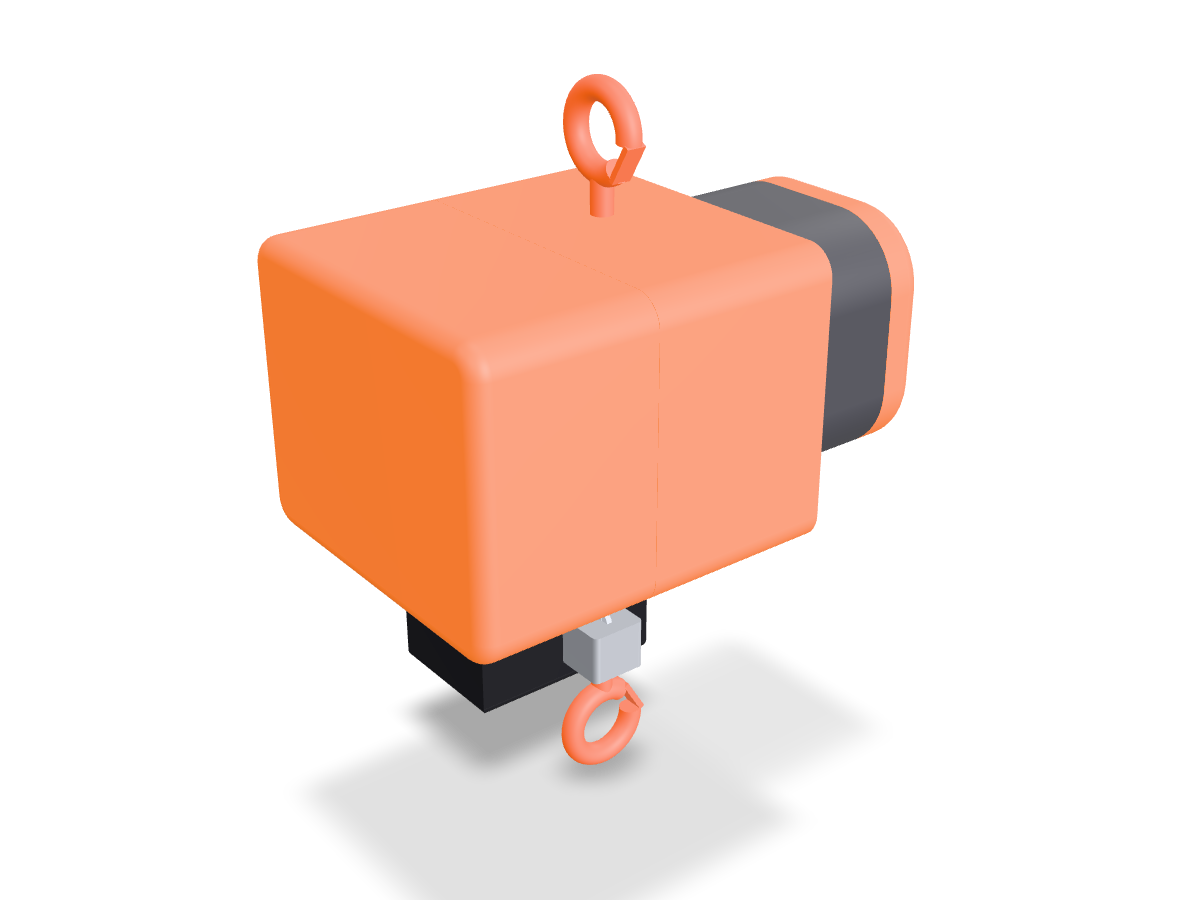

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
FA 500
- Capacity
- 500 kg
- Speed
- 7 m/min
- Rating
- not sourced
- Weight
- 95 lbs net (10 ft standard lift)
Checked against a maker document.
Specifications
| Chain fall | 1 fall |
| Motor power | 0.91 kW (1.22 HP) |
| Dimensions | 11.22 x 17.64 x 12.46 in (L = A + B, W = 2C, D = top-hook bearing point to housing underside; catalogue p.38…11.22 x 17.64 x 12.46 in (L = A + B, W = 2C, D = top-hook bearing point to housing underside; catalogue p.38 hook suspension); Min. distance H 21.85 in (hook to hook) |
| Duty cycle | Short time duty 30 min; JIS/ISO M4, FEM 1Am, ASME H3 |
Source notes
Elephant FA single-speed three-phase single-brake electric chain hoist, model FA-0.5. Elephant Lifting Products catalogue (elephantlifting.com) printed p.40 ("Specifications - FA/FB type hook suspension"): W.L.L. 0.5 t (1100 lbs), test load 0.625 t, standard lift 10 ft, 8 ft pendant cord, load chain 6.3 x 1 (dia. mm x falls), motor 1.22 HP, lifting speed 23 ft/min at 50 Hz and 27.5 ft/min at 60 Hz, min. distance H 21.85 in, net weight 95 lbs. FA is dual-voltage single-speed. Features, printed p.38-39: totally enclosed steel plate body, electro-magnetic DC power-off brake (brake safety factor over 3x rated load), limit switch standard, ratings JIS/ISO M4, FEM 1Am, ASME H3, IP54 hoist / IP65 NEMA 4X pendant, -10 to +40 C, insulation class E; optional Torcon slip-clutch overload device; MAS / MAF / MB motorized trolleys. Made in Japan. Elephant rates its hoists in metric tons. Industrial hoist; Elephant states no entertainment (D8/D8+/C1) rating.
