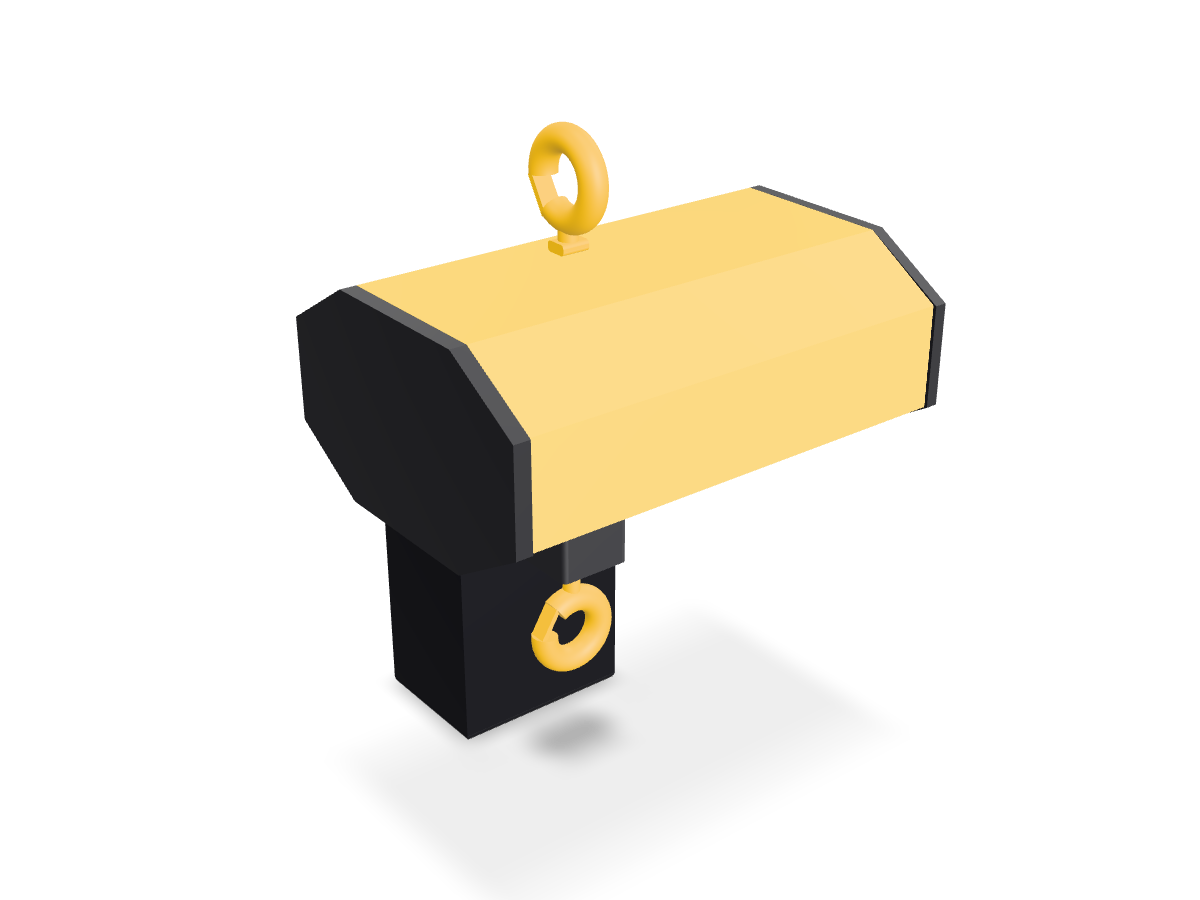

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
R&M Materials Handling
LK 1000
Checked
3D
- Capacity
- 1000 kg
- Speed
- 4 m/min
- Rating
- not sourced
- Weight
- 51.4 kg without chain (LK, estimated unit weight on the sheet)
Checked against a maker document.
Specifications
| Chain fall | 1 fall |
| Motor power | 0.55 kW (0.7 HP) |
| Supply | 400V 3Ph |
| Dimensions | 501 x 421 x 210 mm (L x W x H; L = dimension M, LK column; W derived on the end view; H = body height); C 554…501 x 421 x 210 mm (L x W x H; L = dimension M, LK column; W derived on the end view; H = body height); C 554 mm, hook to hook. Add 63 mm to C for 16 m/min and faster. |
| Duty cycle | 40% |
Source notes
R&M Materials Handling LK electric chain hoist, 1000 kg, hook suspended, 1 fall. R&M dimension sheet lk10_1-fall_top_hook_si.pdf (rmhoist.com): MAX 1000 kg, chain 7 x 20 mm, 1.10 kg/m, estimated unit weight without chain 51.4 kg (LK; inverter, GLS and double-brake variants are longer and heavier). No duty class or speed is printed on the sheet.
