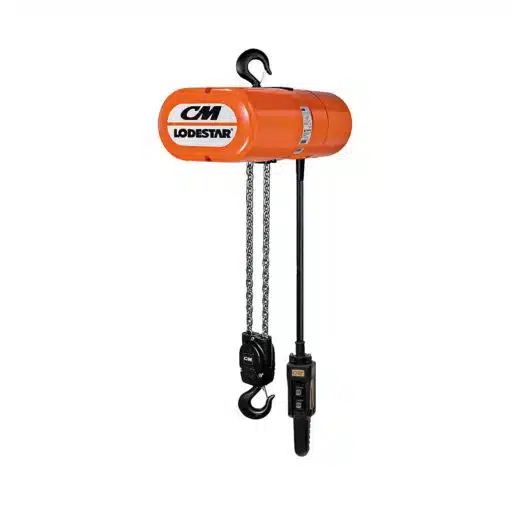

Lodestar Classic 250
- Capacity
- 250 kgAs published: 250 kg (1 fall)
- Speed
- 4.06 m/minAs published: 4.06 m/min (B) or 8.13 m/min (C) at 50 Hz
- Rating
- D8
- Weight
- 28.6 kg (B) or 32.2 kg (C), net weight per manual Table 1
Checked against a maker document.
Specifications
| Chain fall | 1 fall |
| Motor power | 0.186 kW (B and C, manual Table 1); the 2019 and 2022 catalogues print 1/4 HP for B and 1/2 HP for C |
| Current draw | B 1.1 A, C 1.2 A at 400V 3Ph 50Hz (2022); B 1.8/1.1 A, C 2.2/1.3 A at 230/460V 3Ph 60Hz (2019) |
| Control voltage | 110 V standard; 24 V and 48 V optional |
| Supply | 230/460V 3Ph 60Hz, 220/380V 3Ph 50Hz, 220/415V 3Ph 50Hz, 400V 3Ph 50Hz, 115V 1Ph 60Hz |
| Hook path | 429.3 mm (shortest distance between hooks, B and C) |
| Dimensions | 476 mm long (D 279 + F 197), 222 mm wide (I 122 + J 100), body 156 mm high (B), 168 mm (P); small frame B/C/F column, Classic Lodestar table |
| Duty cycle | H4; FEM 2m, 40 % ED (2022 catalogue); the 2019 catalog prints 2M+ |
Source notes
CM Lodestar entertainment chain hoist, 1/4 t, small frame, single fall, model B or C. Chain 1/4 in (6.3 x 18.9 mm EN 818-7, 1.2 kg/m). Rating, speeds, motor, net weight and hook path from CM Lodestar manual 00000999 Rev AC Table 1 p.5; BGV D8 per the same manual p.4. Chain, IP, noise, duty and 400 V current from the CM-ET Entertainment Product Catalogue 2022 (metric, CM Ireland copy) printed p.5; 60 Hz current and product codes from the CM-ET Entertainment Product Catalog 2019 p.7 and p.9 (Classic Lodestar B 3140CF / 3181, C 3200CF / 3182; New Generation Lodestar B 3140NH / 3169NH, C 3200NH / 3201NH). Dimensions from the 2019 catalog p.7 (Classic Lodestar, B/C/F); the 2022 New Generation table prints D 297, F 225, I 107, J 113 mm for the same frame. Source conflicts: the catalogues give C a 1/2 HP motor, the manual 1/4 HP; the catalogue A dimension (413 mm) differs from the manual hook path (429.3 mm). The former seed values (16 m/min, 0.55 kW, IP55) are not in any CM document and were dropped.
