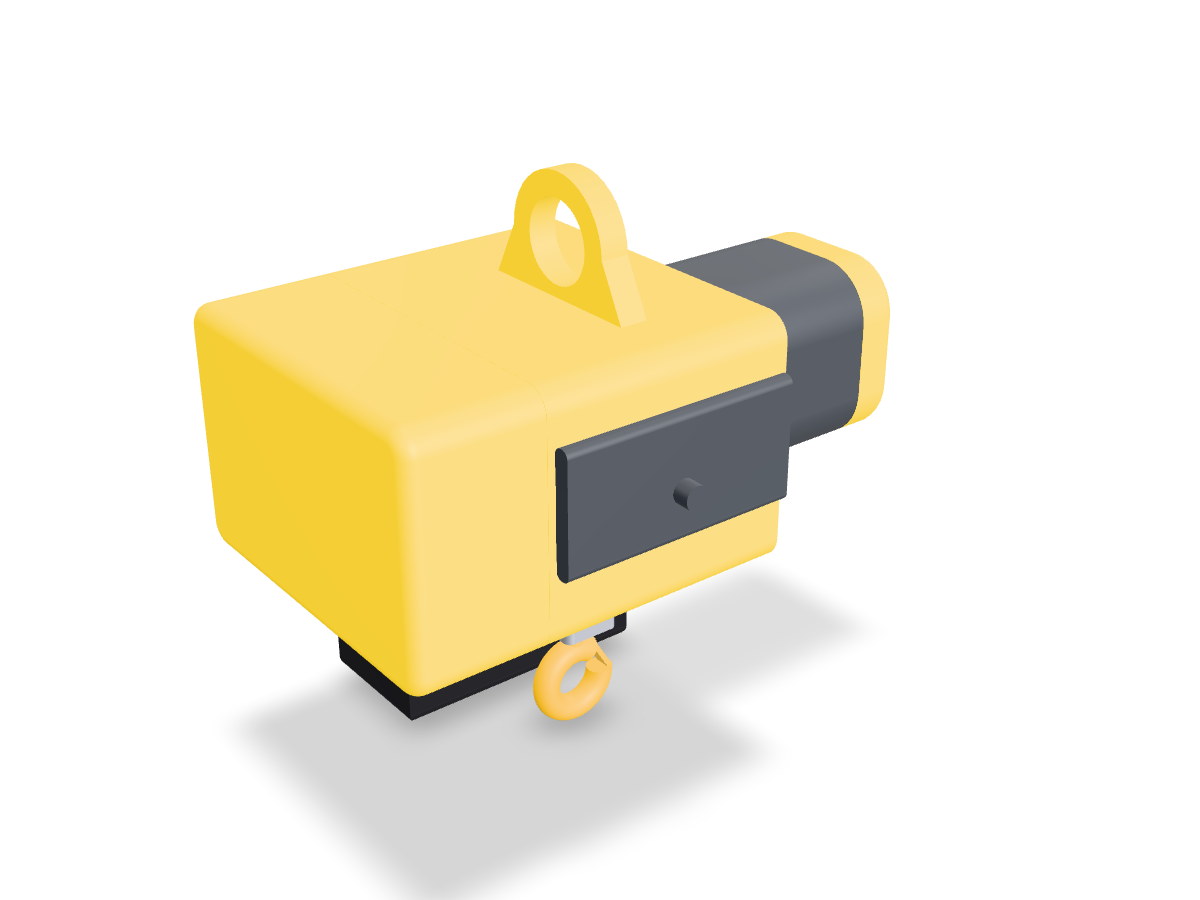

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Specifications
| Chain fall | 1 fall |
| Motor power | ZNK 71 B 8/2 (two-speed) |
| Supply | 400V 3Ph, 230V 1Ph |
| Dimensions | 422 x 268 x 124 mm (l x b x d; b for chain collector H4/H5); C 326 / 364 mm with the short / long suspension…422 x 268 x 124 mm (l x b x d; b for chain collector H4/H5); C 326 / 364 mm with the short / long suspension bracket; C1 335 / 365 (short bracket, collector H4/H5 / H8) |
| Duty cycle | 40/20 % CDF; FEM 3m / ISO M6 at 125 kg (DIN EN 14492) |
Source notes
Demag DC-Com 1 electric chain hoist. Demag document 20357144 (demagcranes.com): selection table p.13 (125 kg (DC-Com 1, 1/1), chain 4.2 x 12.2 mm, 8.0 / 2.0 m/min at 50 Hz (9.6 / 2.4 at 60 Hz), motor ZNK 71 B 8/2, max. weight per hook path 4 / 5 / 8 m), dimensions p.18-19 (l, b, d, C). Industrial hoist; Demag states no entertainment (D8/D8+/C1) rating.
