ER2 010S

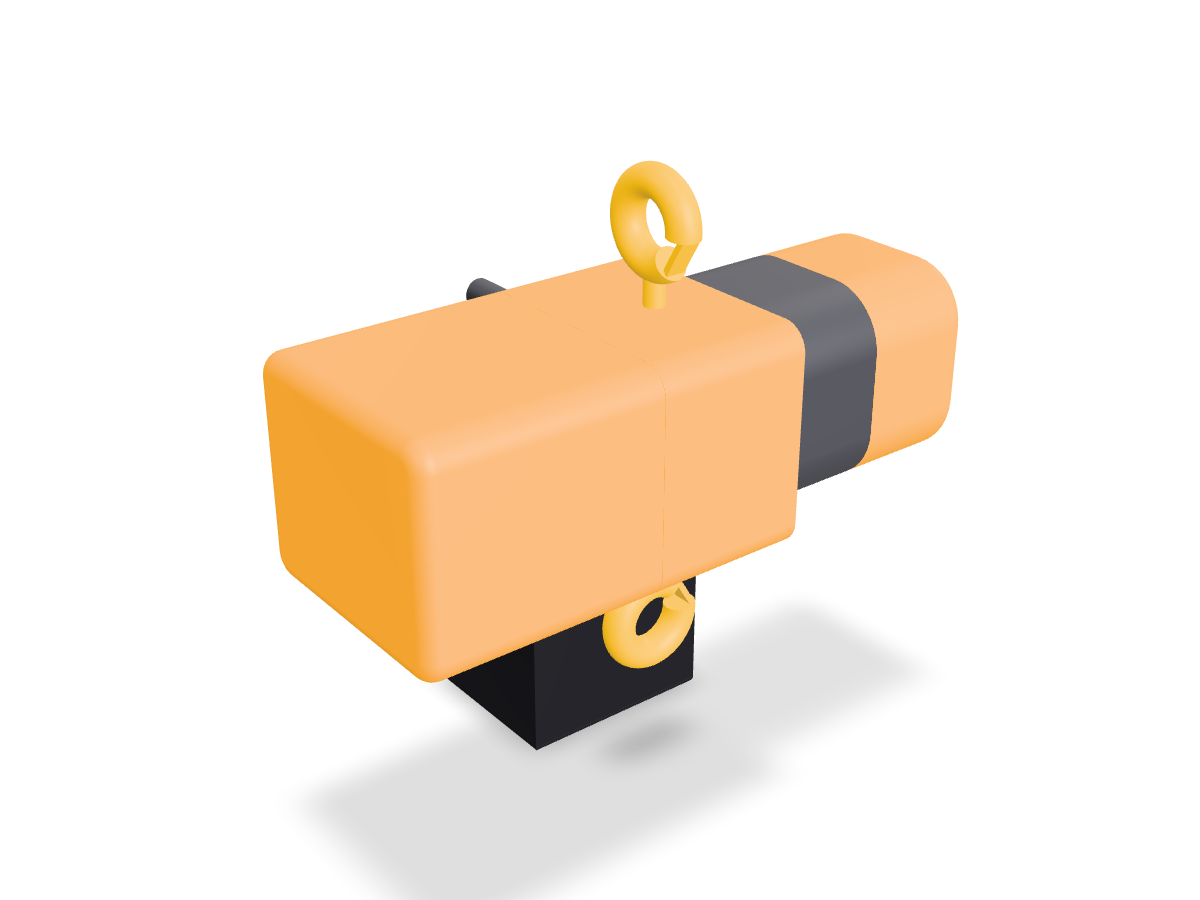

KITO ER2 electric chain hoist, body size D. KITO "Hoists Main Brochure" (EN, kito.net) technical data p.53 lists this capacity as type ER2-010IS: 1000 kg, lifting motor 1.8 kW at 40/20 % ED, lifting speed at 50 Hz 8.2 high / 1.4 low (standard) or 8.2 / 0.7 (adjustable), load chain 7.7 mm, 1 chain fall(s), FEM/ISO 2m / ISO M5, headroom C 430 mm, weight 52 kg plus 1.33 kg per extra metre of lift. The brochure labels its ER2 photos in the short form "ER2 100 S" (p.50), the same pattern as this record's name; the table code is ER2-010IS. Features p.50: 380-440 V / 50 Hz, 24 V control, frequency inverter for dual speed, carbon friction clutch overload limiter, operating-hours / load-cycle counter, thermal motor protection. The standard-setting row prints the high speed as "82"; the adjustable row of the same type reads 8.2, which is the value used. A slower ER2-010IL (0.9 kW, 4.2 m/min, 45 kg) also exists. Industrial hoist; KITO states no entertainment (D8/D8+/C1) rating.
