ER2M 005S

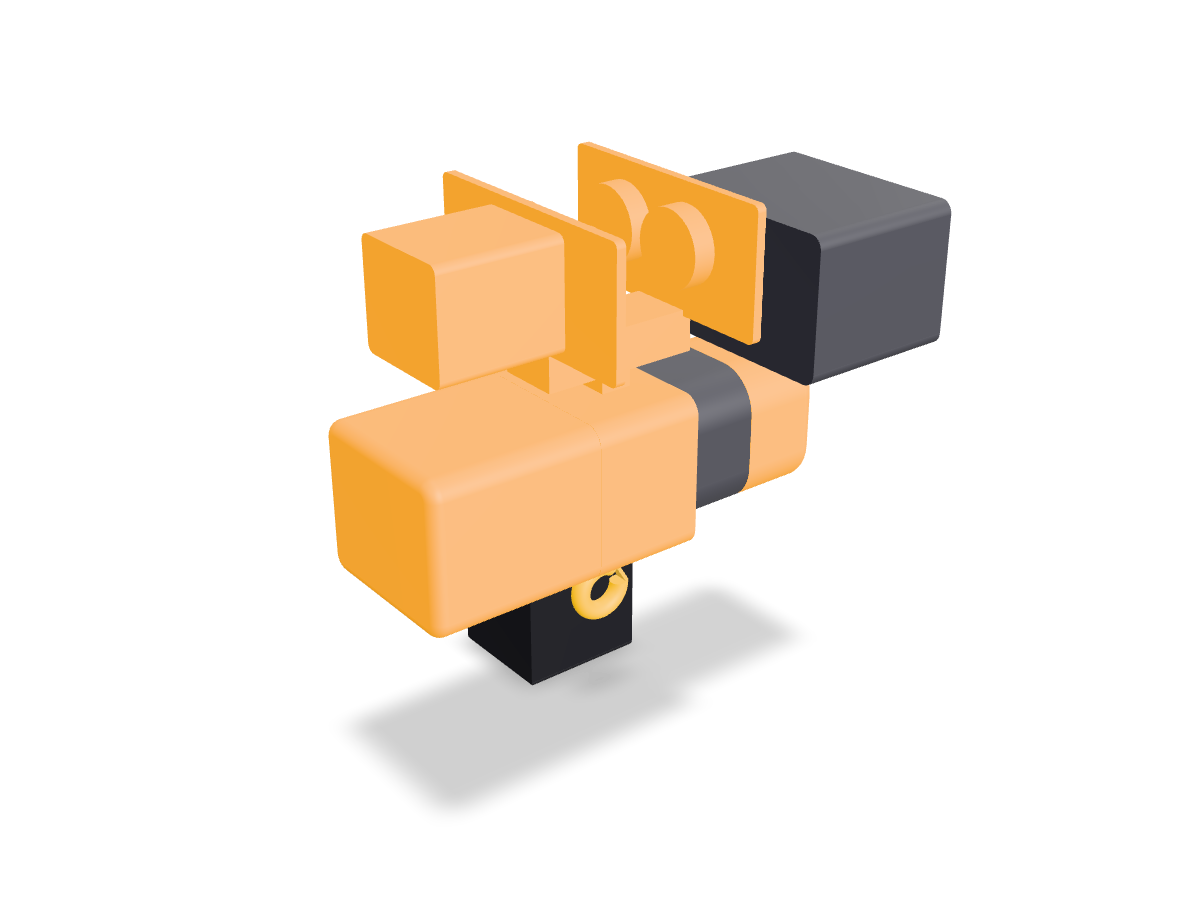

KITO ER2M: ER2 electric chain hoist on MR2 motor trolley (the brochure pictures an "ER2M 100 S", p.50). Hoist:, body size C. KITO "Hoists Main Brochure" (EN, kito.net) technical data p.53 lists this capacity as type ER2-005IS: 500 kg, lifting motor 0.9 kW at 40/20 % ED, lifting speed at 50 Hz 8.5 high / 1.4 low (standard) or 8.5 / 0.7 (adjustable), load chain 6 mm, 1 chain fall(s), FEM/ISO 3m / ISO M6, headroom C 370 mm, weight 36 kg plus 0.81 kg per extra metre of lift. The brochure labels its ER2 photos in the short form "ER2 100 S" (p.50), the same pattern as this record's name; the table code is ER2-005IS. Features p.50: 380-440 V / 50 Hz, 24 V control, frequency inverter for dual speed, carbon friction clutch overload limiter, operating-hours / load-cycle counter, thermal motor protection. A slower ER2-005IL (0.56 kW, 4.5 m/min, 32 kg) also exists. Industrial hoist; KITO states no entertainment (D8/D8+/C1) rating. Trolley: MR2 500 technical data p.85: single speed (S) 20.0 m/min at 40 % ED, or dual (IS) 24.0/4.0-2.4 m/min at 27/13 % ED; flange width 58-163 mm; minimum curve radius 800 mm. Trolley mass is not stated, so the weight given is the hoist alone.
