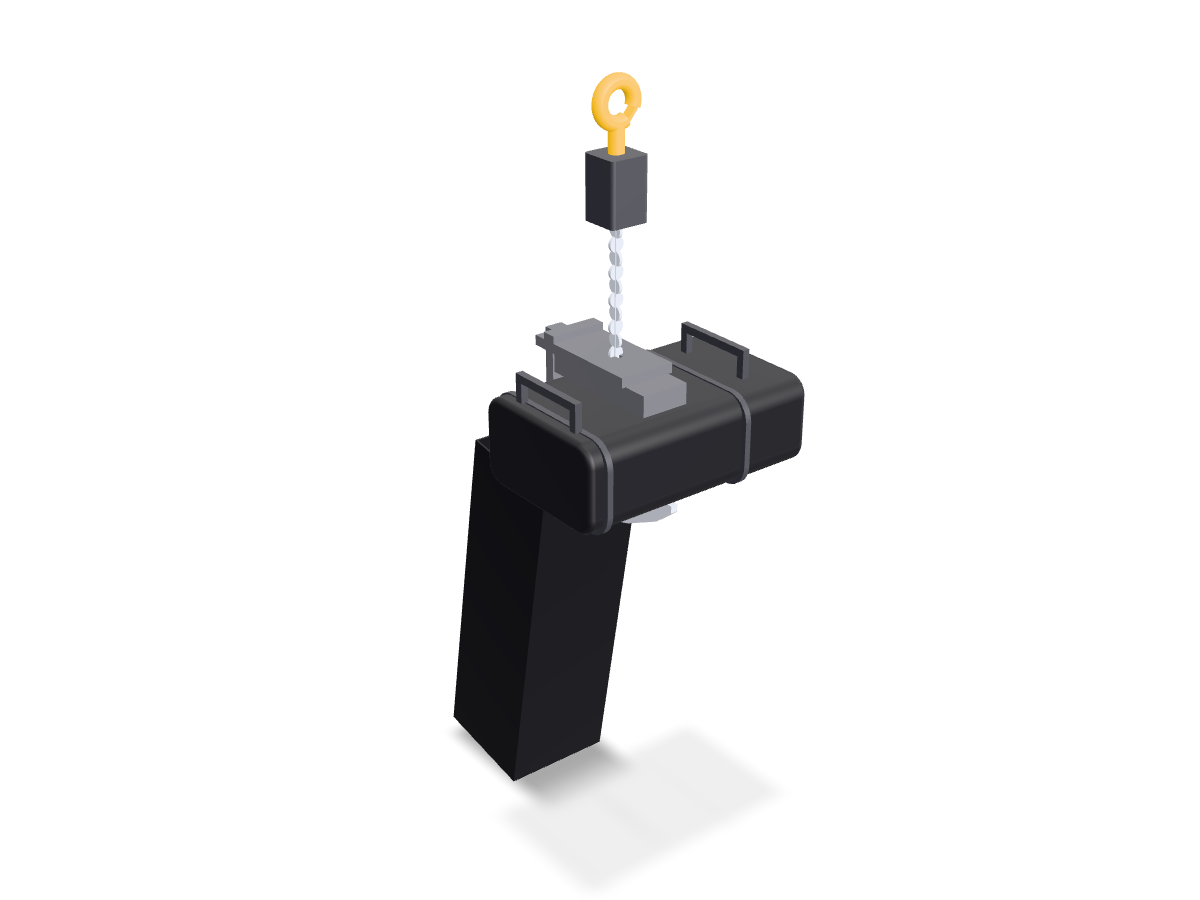

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Specifications
| Chain fall | 1 fall |
| Motor power | 1.1 kW mechanical nominal; 1.39 kW electrical |
| Current draw | 4.36 A at 380-420 V 50 Hz |
| Control voltage | 380-420 V AC (direct control) |
| Supply | 380-420V 3Ph 50Hz |
| Dimensions | 416 x 317 x 246 mm (L x W x H) |
| Duty cycle | 2m/M5, 1600 h usage duration; 40 % ED, 240 switching cycles/h at +40 C |
| Quiet operation | Yes |
| Lifting over people approved | Yes |
Source notes
MOVEKET D8 PLUS SAFETY series entertainment chain hoist, prepared for EN 17206 UC1-UC2. Box building principle, compact design, made in Germany. MOVEKET GmbH (Nufringen) is the successor brand to Movecat GmbH, relaunched within the LIFTKET Group. Official datasheet and operating manual linked. Technical data from the model's own MOVEKET datasheet (V0.2, 29.10.24) p.4: LIFTKET type SK070/76U, safety 8 static, 1 load strand, DC double brake, chain 7.4x21.1 mm, lifting height to 80 m.
