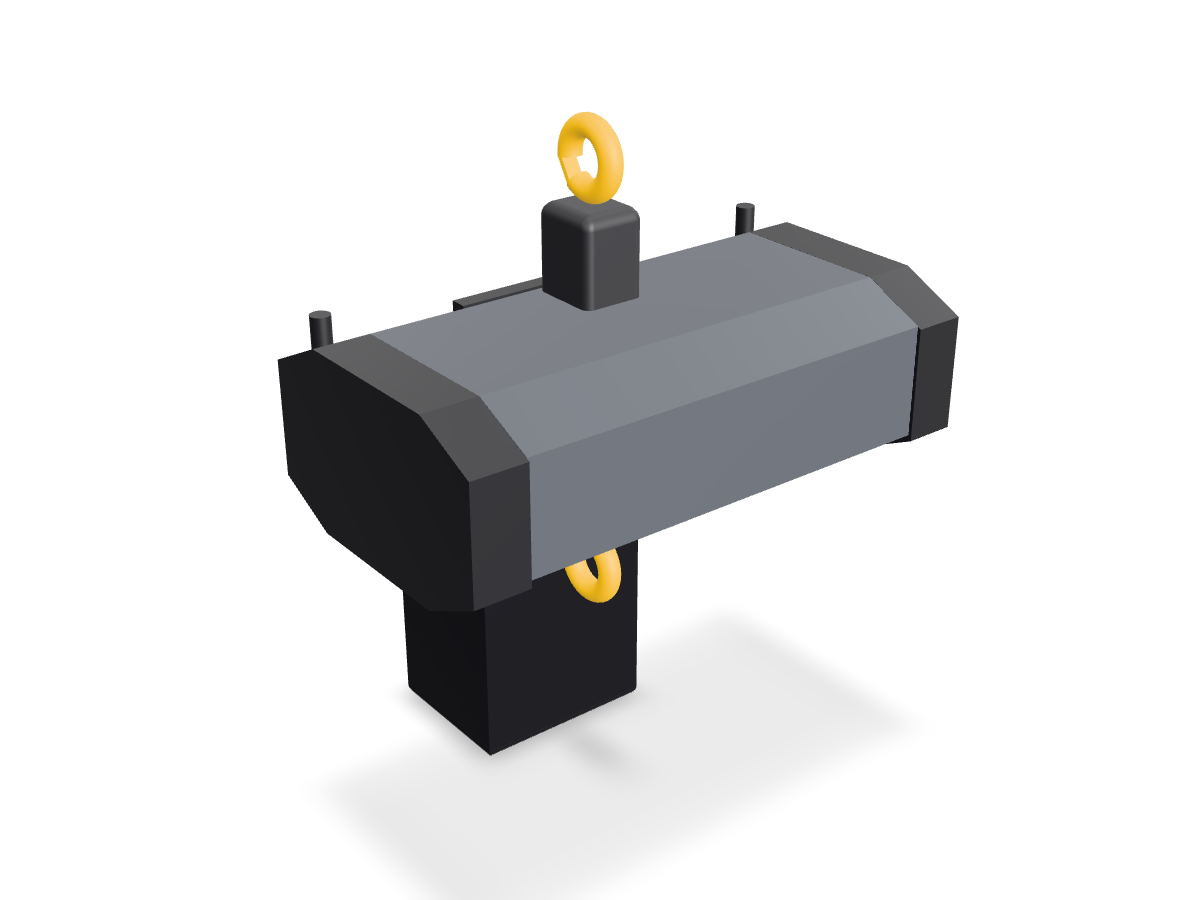

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Specifications
| Chain fall | 1 fall |
| Motor power | 0.73 kW (1.8 kW SL10) |
| Supply | 400-415V 3Ph 50Hz |
| Dimensions | body 519 x 362 x 180 mm (L x W x H; L = I in the column headed Double brake+GLS, front view, along the body.…body 519 x 362 x 180 mm (L x W x H; L = I in the column headed Double brake+GLS, front view, along the body. Single-brake I is 462. l2 + I1 equals I (243 + 276 = 519, 243 + 219 = 462). W = b, side view, the one printed figure across the body and the chain collector. H = d, front view, housing top to underside. C, C1, h1 and h2 include the hook or the chain collector and are not H.); C 438, C1_H20 626, C1_H40 755, b 362, b1 189, b2 124, I_single_brake 462, I_double_brake_GLS 519, l2 243, I1_single_brake 219, I1_double_brake_GLS 276, l4_H20 182, l4_H40 212, i5_H20 91 mm; (dimension_drawing_sl5-1f.pdf p.1) |
| Lifting over people approved | Yes |
Source notes
Verlinde Stagemaker SL electric chain hoist, 500 kg. Stagemaker SL leaflet (GB), Verlinde / Stagemaker Europe download area, specifications table p.8 lists at 500 kg: SL5 504 m (D8+ and D8): 4 m/min, 1 fall, 5,1 x 15,1 mm, 0,73 kW, 30,8 kg, 0,62 kg/m; SL5 508 m (D8 only): 8 m/min, same body; SL10 508 m (D8+ only): 8 m/min, 1 fall, 7,2 x 21,1 mm, 1,8 kW, 47,6 kg, 1,2 kg/m; SL5 516 m and SL10 516 m (D8 only): 16 m/min. The same row also carries SR1 502 m (2 falls). Fields above are for SL5 504 m. SL leaflet p.4, p.6 and p.8: D8+ (SQP2) as standard on SL5 and SL10, D8 by removing one brake; 400-415 V 3 Ph 50 Hz (60 Hz and 230 V options); version A direct control or version B 48 V low-voltage control; G100 black chain; Limitflux magnetic limit switch on SL5/SL10 version B; CE, CSA, EAC, EN 17206. Conflict in the leaflet: p.4 claims IP66 as standard, while the p.8 table marks "IP 66 (soon available)" as not available on both versions; no IP rating is given here for that reason.
