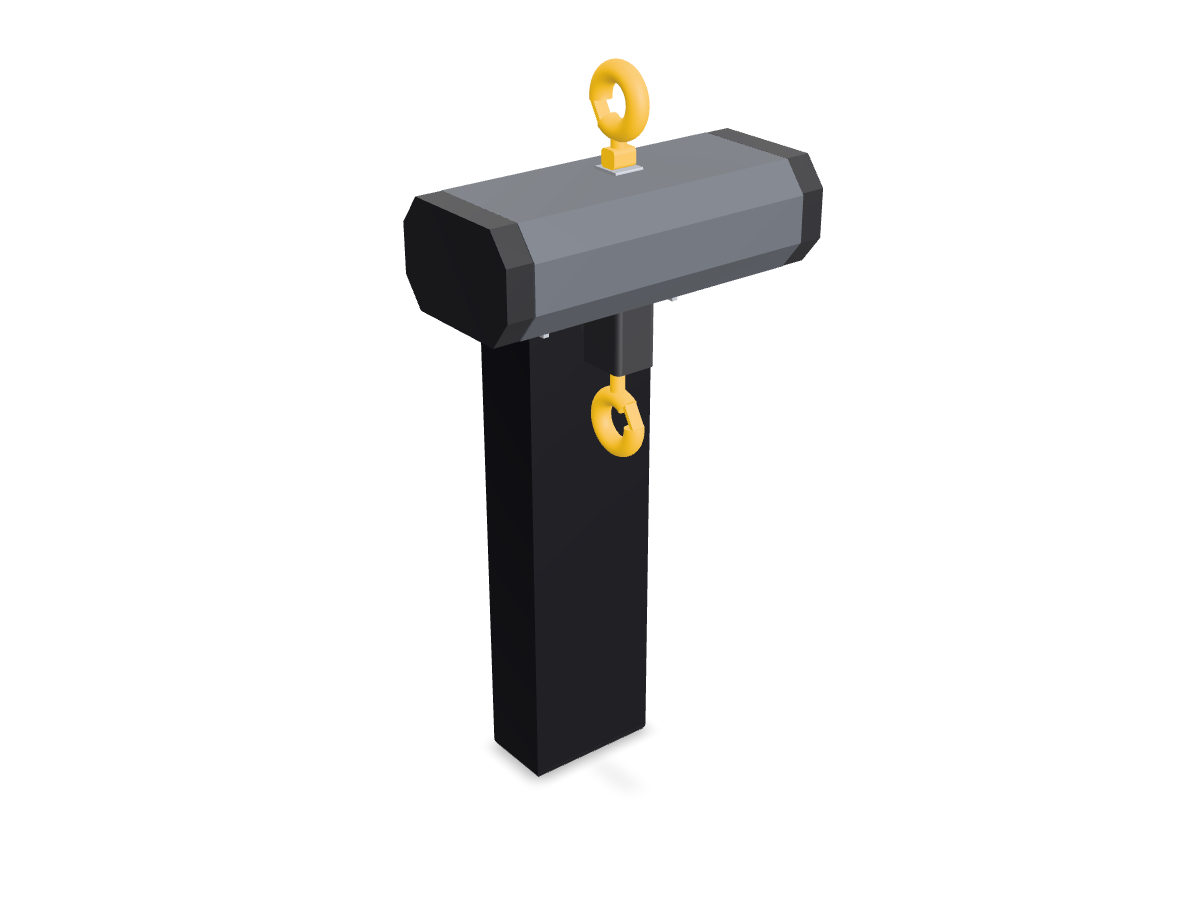

Stagemaker SR1 250

Verlinde Stagemaker SR electric chain hoist, 250 kg. Stagemaker SR leaflet (GB), Verlinde / Stagemaker Europe download area, specifications table p.8 lists at 250 kg: SR1 254 m1 A (D8 model, D8+ ready): 4 m/min, 1 fall(s), chain 4 x 11 mm, 0,19 kW, A x B x C 344 x 153 x 100 mm, 10,4 kg body without chain, 0,37 kg/m chain; SR1 252 m1 A (D8+ model): 2 m/min, 2 fall(s), chain 4 x 11 mm, 0,19 kW, A x B x C 344 x 153 x 100 mm, 10,4 kg body without chain, 0,37 per fall kg/m chain. Fields above are for SR1 254 m1 A (D8, 1 fall). At 250 kg the SR1 is D8+ only in the 2-fall SR1 252; the newer SL leaflet p.7 states 250 kg on one fall as D8+, a conflict with this table that is left stated rather than resolved. SR leaflet p.4 and p.8: 400/415 V 3 Ph 50 Hz, version A direct control or version B 48 V low-voltage control; double DC disc brake as standard; adjustable torque limiter; class F motor; CE, CSA, GOST. D8 models are "D8+ ready": D8+ only after the torque limiter is reset to half the nominal load (p.8 note 1). Dimensions A x B x C are with 2 brakes; chain weight per metre doubles on 2-fall models. The current SL leaflet keeps SR1 and SR25 but replaces SR2/SR5/SR10 with SL5/SL10, so SR2/SR5/SR10 are the previous range.
