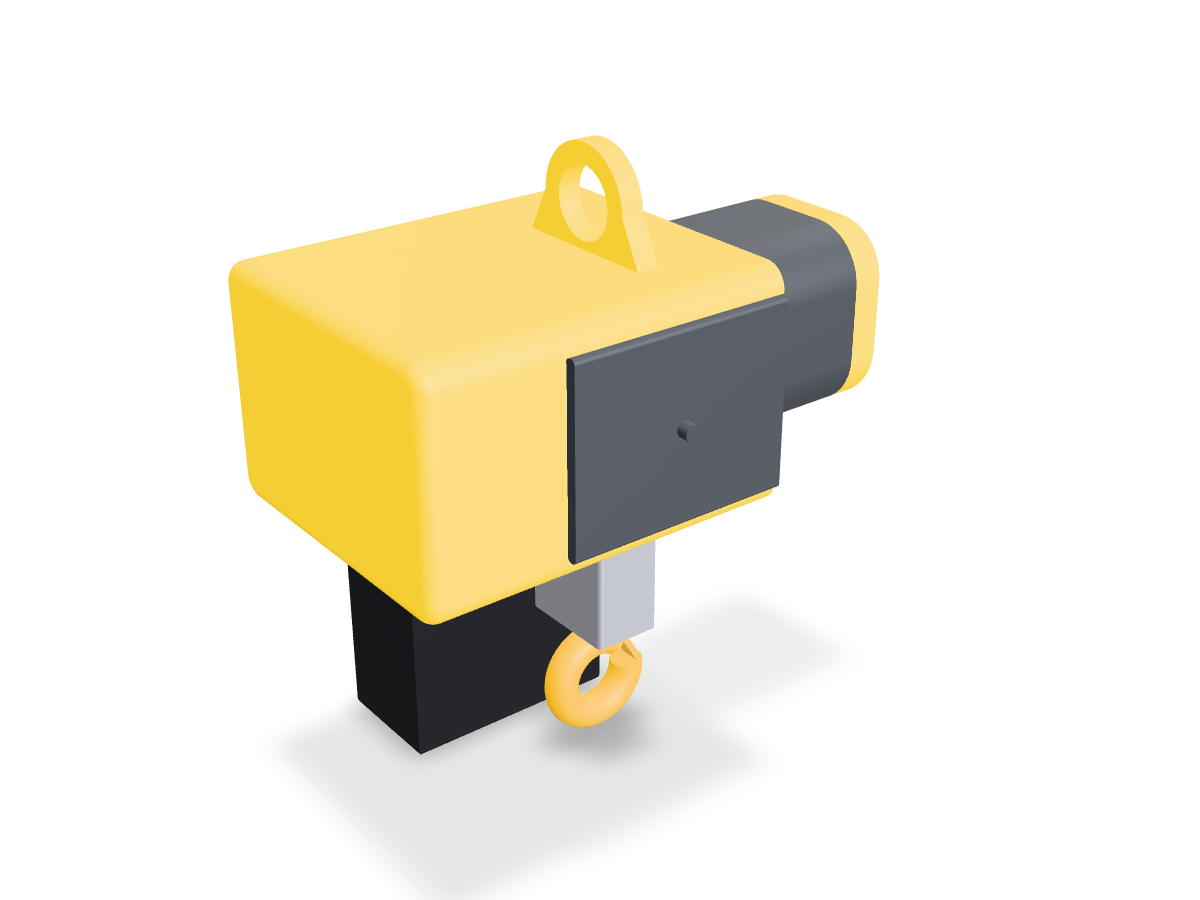

מודל תלת־ממד
DRAFT MODEL, NOT CERTIFIED GEOMETRY
חלקים בחירה למיקוד, Esc לאיפוס
DRAFT MODEL, NOT CERTIFIED GEOMETRY
מפרט
| נפילות שרשרת | 2 falls |
| הספק מנוע | ZNK 100 B 8/2 (pole-changing, 2 speeds) |
| מידות | body 578 x 349 x 187 mm (L x W x H; L = l. W = b for chain collector H5 (349). b for chain collector H8 is…body 578 x 349 x 187 mm (L x W x H; L = l. W = b for chain collector H5 (349). b for chain collector H8 is 409 and is not W. H = d, the motor-housing height. C and C1 are headroom to the hook and are not H.); C_short 541, C_long 574, C1_H5_short 582, C1_H8_short 582, C1_H5_long 615, C1_H8_long 615, b_H5 349, b_H8 409, b3_H5 227, b3_H8 330, l 578, d 187 mm; (data_sheet_dc-pro_masstabellen.pdf p.1) |
| מחזור עבודה | FEM 2m+ / ISO M5+ (DIN EN 14492; 2m+ = 1900 h at full load) |
הערות מקור
Demag DC-Pro electric chain hoist, two hoist speeds. Demag selection tables 1.7.1 "DC-Pro (2 hoist speeds)", document 20352544 (13 07 18) p.20-21, linked from demagcranes.com lists at 2000 kg: DC-Pro 10, 2/1, 2m+ / M5+ (chain drive FEM 2m per EN 818-7), chain 7,4x21,2 mm, 6,0/1,5 m/min at 50 Hz (7,2/1,8 at 60 Hz), hook path 5 and 8 m, motor ZNK 100 B 8/2, max. weight 65 kg (5 m) / 73 kg (8 m). DC-Pro 15 (2/1) and DC-Pro 25 (1/1) also cover 2000 kg. Demag codes the hoist as DC-Pro <size>-<load capacity in kg>. Group of mechanisms per DIN EN 14492 (FEM / ISO); 2m+ corresponds to 1900 hours at full load (note 5). Standard hook path 5 and 8 m (4 m for sizes 15-25); larger hook paths on request. Motor key data (kW) are on a separate page not in this extract, so only the motor size is given. Industrial hoist; Demag states no entertainment (D8/D8+/C1) rating.
