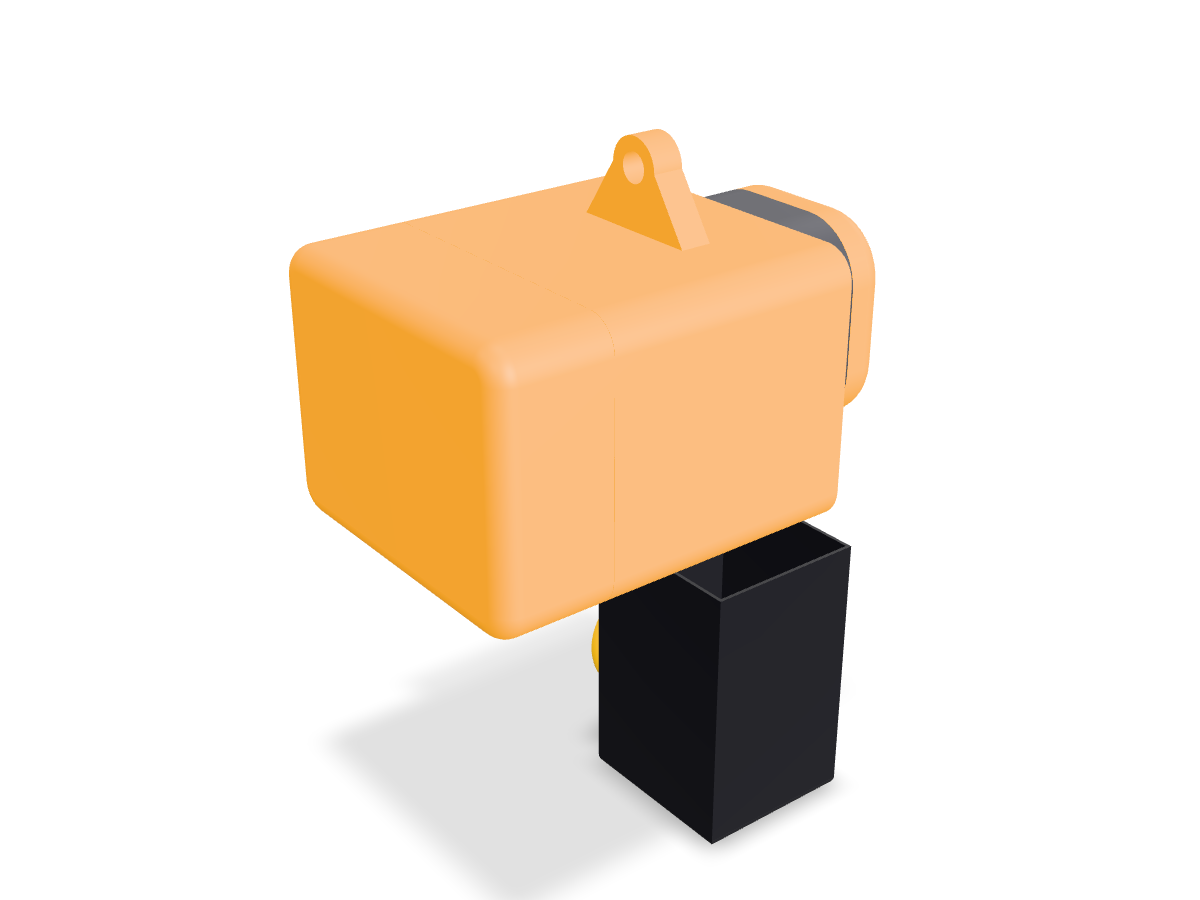

3D model
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Parts select to focus, Esc to reset
DRAFT MODEL, NOT CERTIFIED GEOMETRY
Specifications
| Chain fall | 1 fall |
| Motor power | 1.5 kW (2.0 HP) |
| Control voltage | 24 V |
| Supply | 380-440V 3Ph 50-60Hz |
| Dimensions | Body 433 x 403 x 235 mm (L x W x H, Kito outline EQ010IS); Headroom C 465 mm (suspension eye) / 525 mm (top hook) |
| Duty cycle | 40/20 % ED (high/low); FEM 2m |
Source notes
KITO EQ inverter electric chain hoist, body size D. KITO "Hoists Main Brochure" (EN, kito.net) technical data p.46 lists this capacity as type EQ010IS: 1000 kg, 1.5 kW at 40/20 % ED, lifting speed 9.2 m/min (light load, 0-30 %), 7.1 m/min (30-100 %), 1.2 m/min low, chain 7.1 x 19.9 mm, 1 fall, FEM 2m, 42 kg, standard lift 3 m; headroom C 465 mm on suspension eye, 525 mm on top hook. Features p.42-43: 380-440 V 50-60 Hz 3-phase (single-phase EQS variant also exists), IP55 die-cast aluminium body, 24 V control, frequency inverter as standard, electronic overload protection plus friction clutch, max lift 15 m, -20 to +40 C. Industrial hoist; KITO states no entertainment (D8/D8+/C1) rating.
